Curve DownRock

All order enquiries, build specs, & ALL ORDERS FROM THE EU please email


This beast is Curve's take on the modern trail hardtail, fun, fast and thrilling. It's a versatile mountain bike that can descend, climb, jump and drift with the best of them! It will have you "fanging around like a frill neck lizard on hot sand."

The Downrock gives you raw, unrivalled adrenaline rush, especially here in it's adopted home in the Surrey Hills, with us at G!RO!! The most fun you can have in the mountain bike mecca nestled in the Surrey Hills!

Drop it like it’s hot

Designed around a short seat tube, to accomodate the latest and greatest super long travel dropper posts, making this bike quickly adaptable to a multitude of mountain biking situations! Spec with anything from 170mm to 210mm! Even more important, given this bike is a hardtail, so you can let that natural leg suspension, do it's thing, and let you get groovey on the bike!


The bottle cage mounts sit low, bringing that centre of gravity down, which is important when tackling the kind of trails the downrock loves! It also means, pop a frame back in there, and you've got yourself a non-traditional bike packing rig!

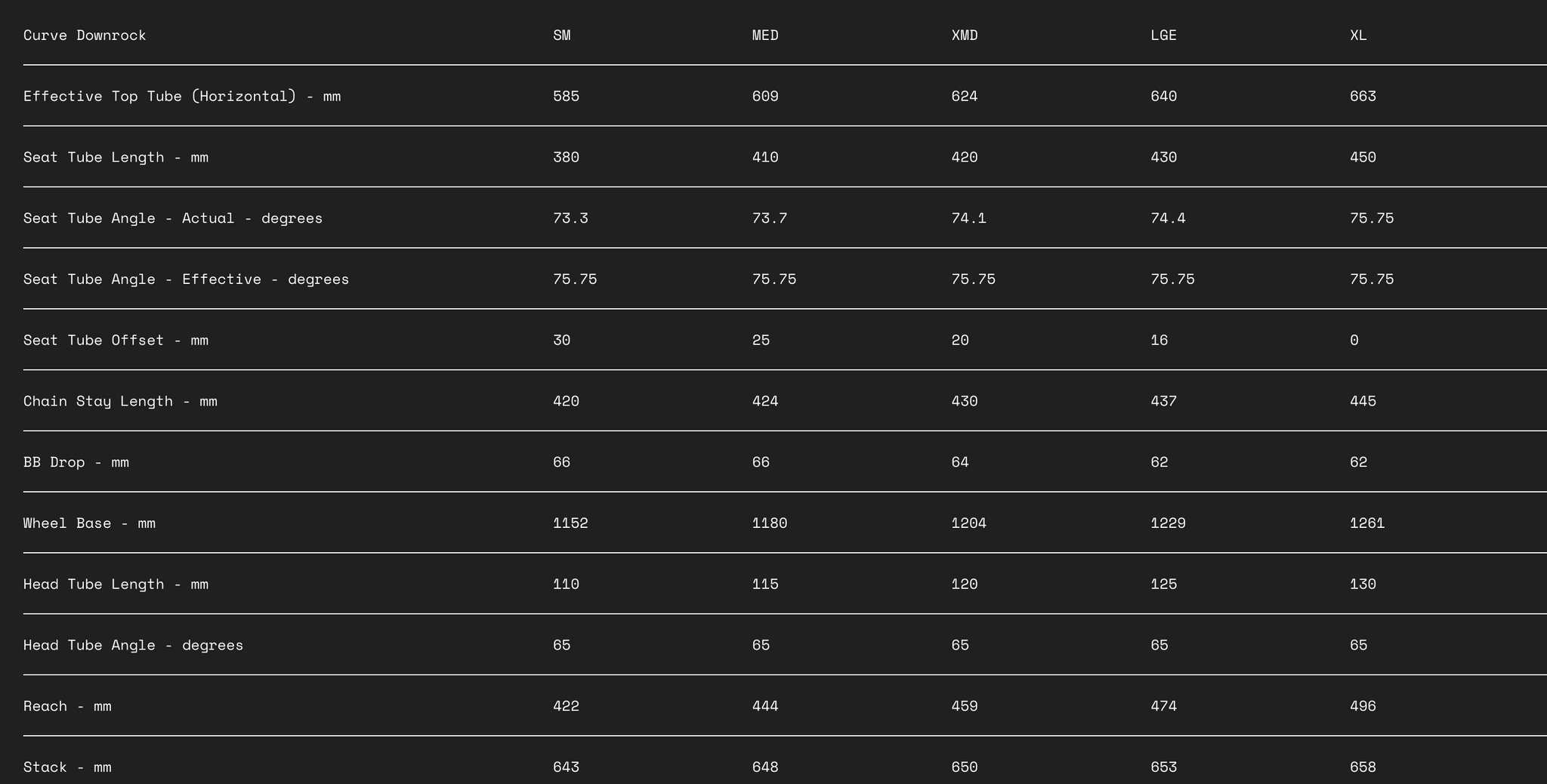

 Scaled Geometry

Some clever engineering tricks as ever from our friends at Curve mean the bike ride and handling characteristics don't vary between sizes! This is done by scaling the front and rear centres proportionally. This is especially important for riders with longer inseams as it prevents the saddle sitting too far behind above the rear wheel.

 Re-route it

External routing means less fuss and hassle when maintaining the drivetrain, less noise and chatter, whilst maintaining the maximum integrity of the frame!


Bottom Bracket: 73mm T47 BB

Brakes: Post-mount disc, clearance for 180mm front, 160mm rear rotors

Drivetrain: 1x only (no front derailleurs),
Max chainring 34T Md-XL, 32T SM frame
52mm chainline

Fork: Compatible with 1.5-1.⅛ steerer.
Frame designed around 130mm travel forks, compatible up to 150mm

Headtube: Tapered 56/44 Zero Stack Headtube

Hub spacing: Boost 148x12mm rear dropout, RockShox Pike fork is Boost 110x15mm.

Mounts: 2x Bottle Cage mounts

Cable routing: Full external cable routing
Seatpost stealth routing for dropper

Seatpost: 31.6 seatpost, 34.9 seat clamp.
Optimised around 170-210mm dropper seatposts.

Tyres: 82mm tyre clearance for 29x2.6” (66mm)


Front and rear centres are scaled across the sizes in order to provide the same ride and handling characteristics across a range of rider heights.

Effective seat tube angles across all sizes are 75.75 degrees relative to stack.

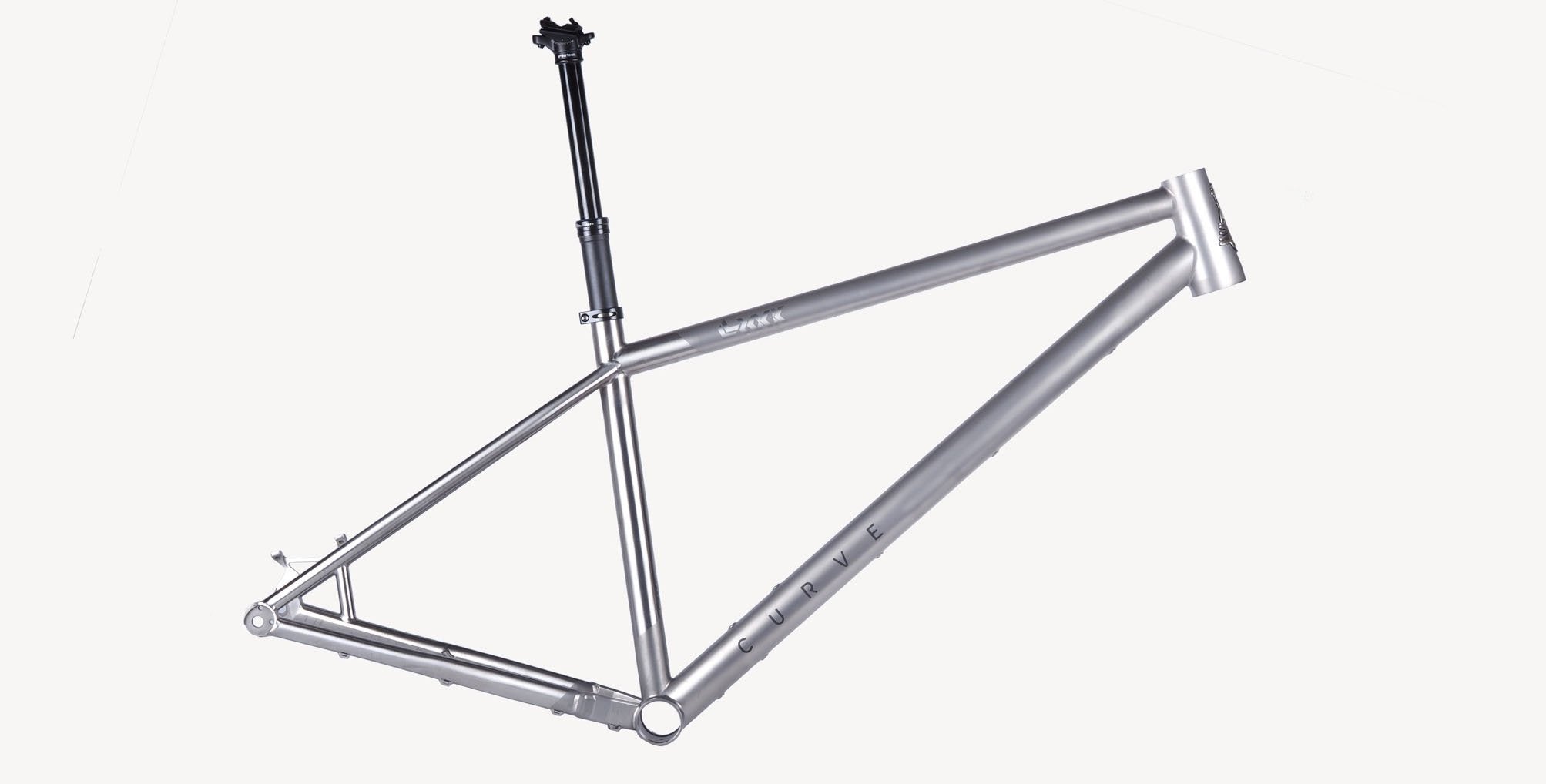

Frame: Curve Titanium Downrock Hardtail MTB

Fork: RockShox Pike Ultimate Charger 2 RC2 29" Boost™ 15X110 MXL Stealth Debonair 130 Gloss Silver

Headset: Curve 44/56

Seat Clamp: Curve Alloy 34.9

Seat Post: RockShox Reverb Stealth 31.6mm 175/200mm Travel


Wheels: Curve Dirt Hoops 29 Wider 40 XD Wheelset // Tubeless Ready // DT Swiss 350 CL hubs // CX Ray aero-bladed spokes

Shifter: SRAM SL X01 Eagle Trigger

Brakes: SRAM G2 RSC Alloy Post Mount Disc // SRAM Centrelock Rotors 180mm Front, 160mm Rear

Crank: SRAM GX Eagle DUB 170mm Direct Mount 32T

Bottom Bracket: CURVE T47 73mm DUB

Derailleur: SRAM GX Eagle

Cassette: X-GLIDE 1275 Eagle 10-50T

Chain: GX Eagle 12S

Bars: Joystick 8-BIT LT 28mm Rise Alloy

Stem: Joystick Binary 35mm 31.8

Saddle: WTB Silverado Pro

Tyres: e*thirteen TRS S/S Race 29*2.35

Grips: Joystick Binary Single Clamp

PLEASE NOTE: Spec subject to change according to availability


What’s the turnaround time for an DownRock?

If ordering a frameset only, and the required size is in stock, we should receive your order with 2–3 weeks from Curve HQ, from there we can arrange collection and delivery. If the size you need is out of stock, or if you have ordered any custom modifications, the frame will take an additional 6–12 weeks to go through production. Complete bikes generally take 8–12 weeks to build, which is a process we can start with Curve upon receipt of a minimum 50% deposit.

Do you ship to Europe?

We ship from the UK to anywhere in Europe here at G!RO, and can send anything from just frameset through to full builds. Priced according to your local currency and subject to freight costs.

How much is a complete bike?

Contact us here at G!RO for complete bike package pricing. Custom builds are priced according to specifications – get in touch with us for custom, dream spec options!
