Curve DownRock

ENTER THE DOWNROCK

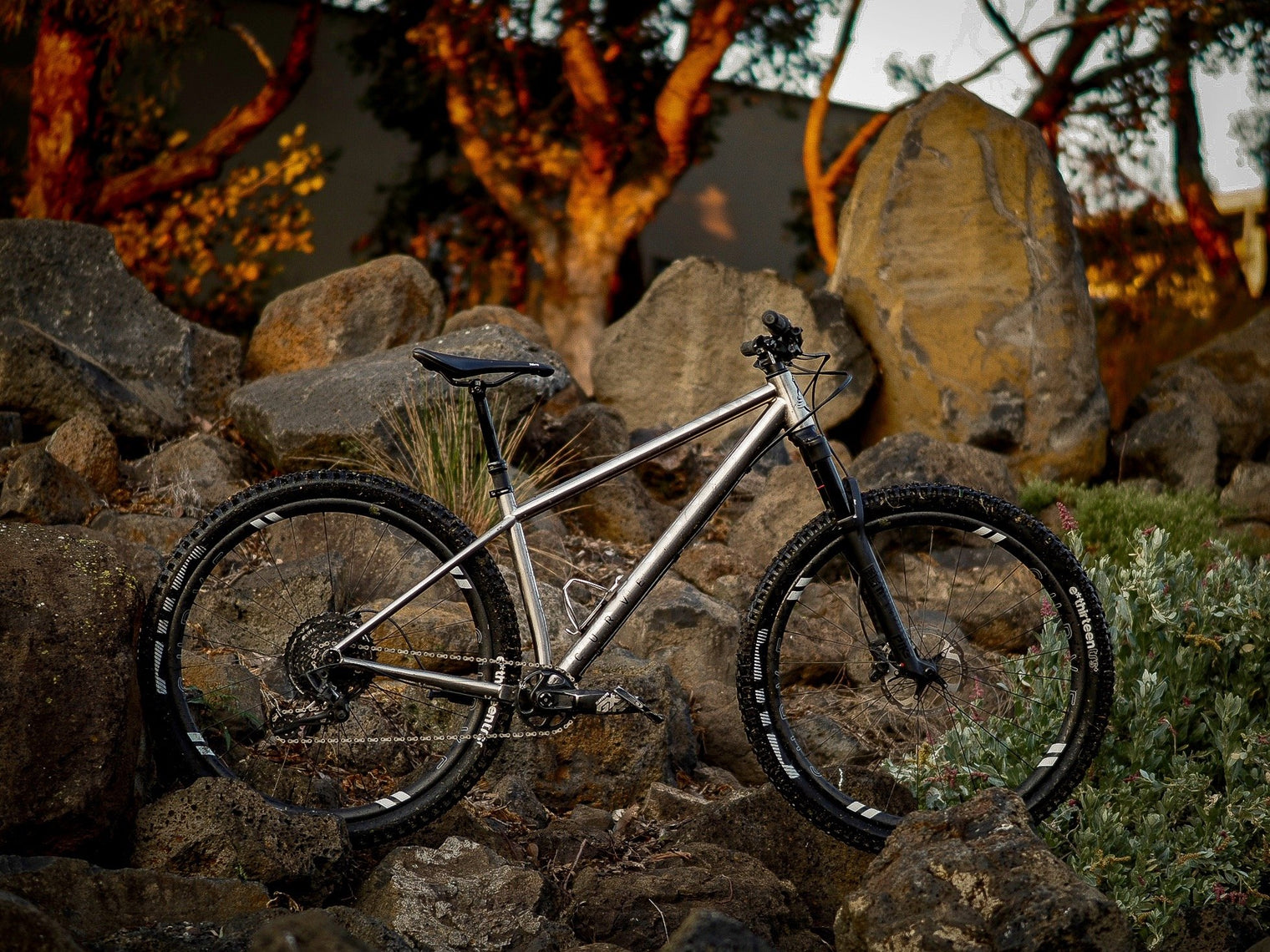

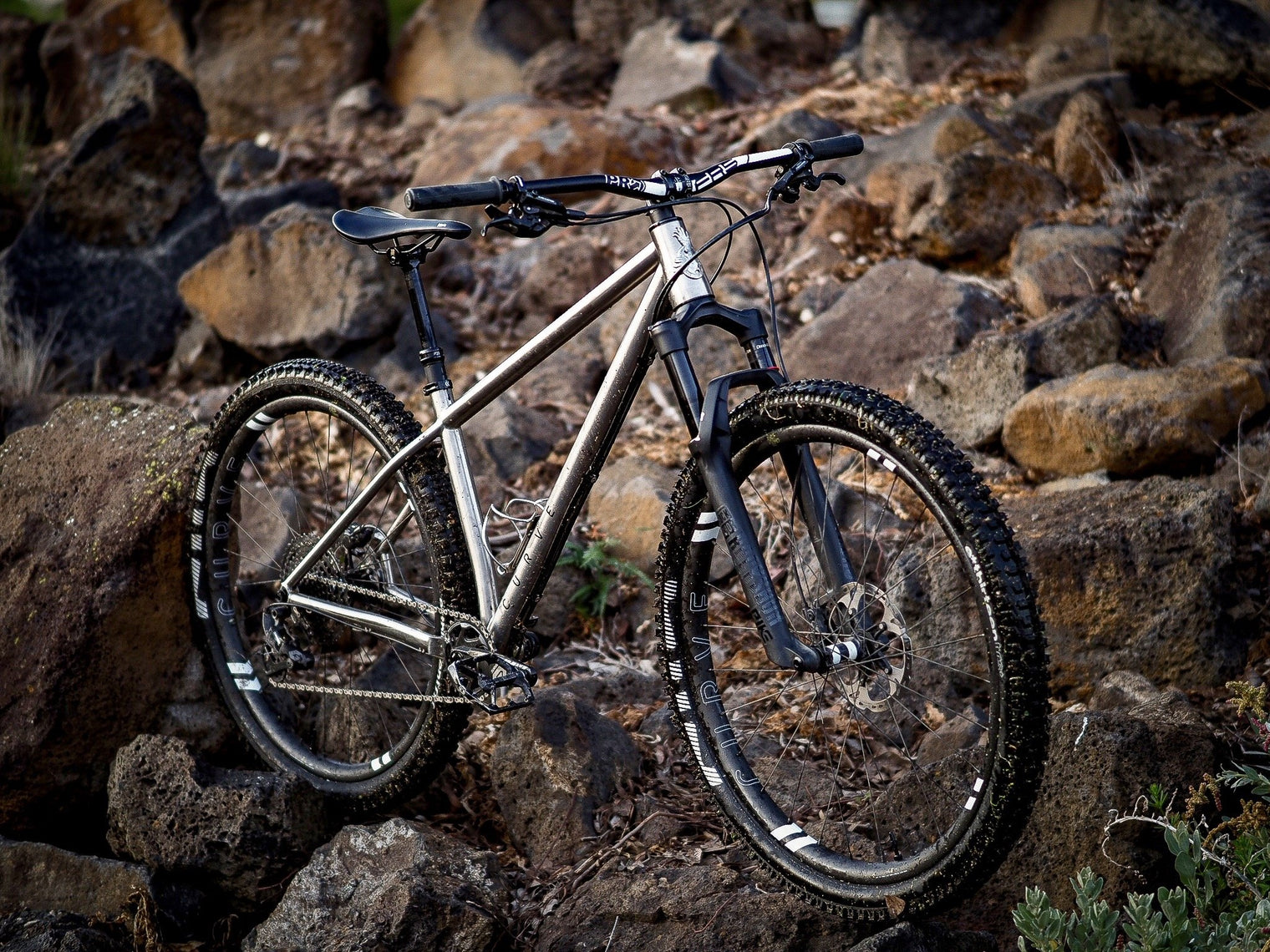

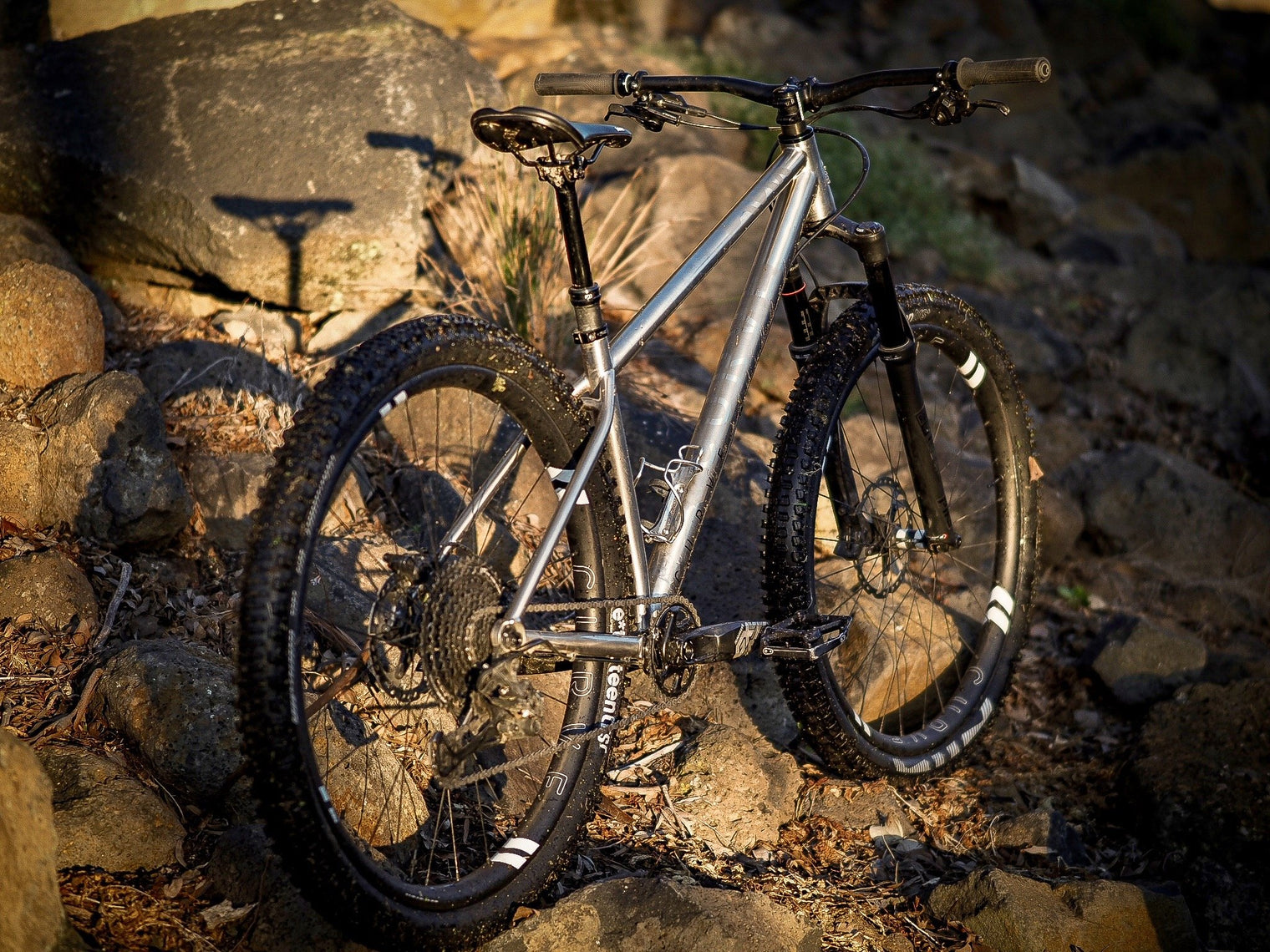

Enter the DownRock - our interpretation of the modern trail hardtail. A balanced, versatile mountain bike for fanging around like a frill neck lizard on hot sand.

The Downrock brings back that raw, adrenaline rush - it whips around corners faster than a tiger snake and will leave a big dumb grin on your face.


Drop it like it’s hot

The seat tubes are short in order to accommodate the latest generation of long travel dropper posts (170mm - 210mm). This is especially advantageous on a hardtail as your legs act as the rear suspension.

 Balanced

Bottle cage mounts are placed low inside the front triangle and underneath the downtube to maintain the lowest possible centre of gravity and to give room in the front triangle for a frame bag if required.

 Scaled Geometry

Front and rear centres are scaled proportionally across the sizes in order to provide the same ride and handling characteristics across a range of rider heights. This is especially important for riders with longer inseams as it prevents the saddle sitting too far behind above the rear wheel.

 Re-route it

Full external Cable routing for ease of maintenance, quiet operation and maximum frame integrity (Seatpost stealth routing for dropper)

COMPATIBILTY

Bottom Bracket: 73mm T47 BB

Brakes: Post-mount disc, clearance for 180mm front, 160mm rear rotors

Drivetrain: 1x only (no front derailleurs),
Max chainring 34T Md-XL, 32T SM frame
52mm chainline

Fork: Compatible with 1.5-1.⅛ steerer.
Frame designed around 130mm travel forks, compatible up to 150mm

Headtube: Tapered 56/44 Zero Stack Headtube

Hub spacing: Boost 148x12mm rear dropout, RockShox Pike fork is Boost 110x15mm.

Mounts: 2x Bottle Cage mounts

Cable routing: Full external cable routing
Seatpost stealth routing for dropper

Seatpost: 31.6 seatpost, 34.9 seat clamp.
Optimised around 170-210mm dropper seatposts.

Tyres: 82mm tyre clearance for 29x2.6” (66mm)

GEOMETRY:

Front and rear centres are scaled across the sizes in order to provide the same ride and handling characteristics across a range of rider heights.

The seat tubes are short in order to accommodate the latest generation of long travel dropper posts (170mm - 210mm). This is especially advantageous on a hardtail as your legs are the rear suspension.

Effective seat tube angles across all sizes are 75.75 degrees relative to stack.

FRAMESET

Frame: Curve Titanium Downrock Hardtail MTB

Fork: RockShox Pike Ultimate Charger 2 RC2 29" Boost™ 15X110 MXL Stealth Debonair 130 Gloss Silver

Headset: Curve 44/56

Seat Clamp: Curve Alloy 34.9

Seat Post: RockShox Reverb Stealth 31.6mm 175/200mm Travel


COMPLETE SRAM GX Eagle

Wheels: Curve Dirt Hoops 29 Wider 40 XD Wheelset // Tubeless Ready // DT Swiss 350 CL hubs // CX Ray aero-bladed spokes

Shifter: SRAM SL X01 Eagle Trigger

Brakes: SRAM G2 RSC Alloy Post Mount Disc // SRAM Centrelock Rotors 180mm Front, 160mm Rear

Crank: SRAM GX Eagle DUB 170mm Direct Mount 32T

Bottom Bracket: CURVE T47 73mm DUB

Derailleur: SRAM GX Eagle

Cassette: X-GLIDE 1275 Eagle 10-50T

Chain: GX Eagle 12S

Bars: Joystick 8-BIT LT 28mm Rise Alloy

Stem: Joystick Binary 35mm 31.8

Saddle: WTB Silverado Pro

Tyres: e*thirteen TRS S/S Race 29*2.35

Grips: Joystick Binary Single Clamp

PLEASE NOTE: Spec subject to change according to availability


FAQs

What’s the turnaround time for an DownRock?

If ordering a frameset only, and the required size is in stock, you should receive your order with 2–3 weeks. If the size you need is out of stock, or if you have ordered any custom modifications, the frame will take an additional 6–12 weeks to go through production. Complete bikes generally take 8–12 weeks to build after a minimum 50% deposit has been paid.


Do you ship to Europe?

We can ship your DownRock to you anywhere in Europe, however check out our Stockist page to find for your local Curve Crew to help you out with a complete bike.


How much is a complete bike?

Contact us for complete bike package pricing. Custom builds are priced according to specifications – get in touch with your local Curve dealer for a quote for your dream bike build.
